Anti Vibration Rubber Pad
Rib Rubber Pad (Anti Vibration)
BOTH SIDE RIB RUBBER PAD (3/8”) APPLICATION ➢ Wherever bolting is to be avoided and minor, non-critical vibration conditions exist. (pumps, motors, air- conditioning unit’s, generators etc.) NOTES 1. Material: Natural Rubber / Neoprene - S/A – 55˚ ± 5˚. 2. Maximum loading: 60 lbs/sq.in. 3. Working range: 15 to 55 lbs/sq.in. FEATURES ➢ Alternate both side rib construction. ➢ No boiling required. ➢ Simple field installation.
Square Cell Rubber Pad
Square cell design rubber pad APPLICATION ➢ Wherever bolting is to be avoided and minor, non-critical vibration conditions exist. (pumps, motors, air- conditioning unit’s, generators etc.) NOTES 1. Material: Natural Rubber / Neoprene - S/A – 55˚ ± 5˚. 2. Maximum loading: 60 lbs/sq.in. 3. Working range: 15 to 55 lbs/sq.in. FEATURES ➢ Alternate Square cell construction. ➢ No boiling required. ➢ Simple field installation.

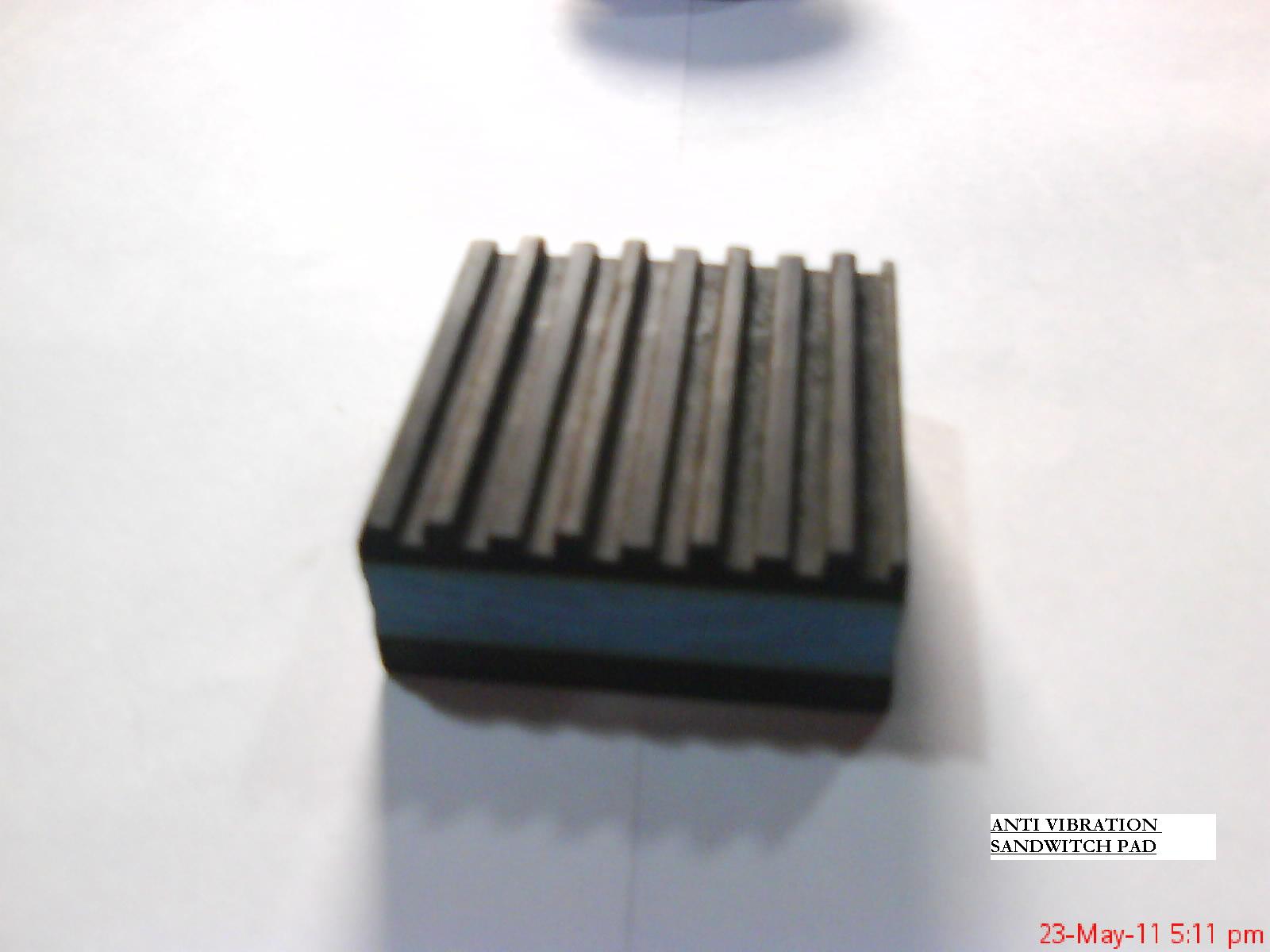

Anti Vibration Fome Sandwitch Rubber Pad
APPLICATION ➢ Wherever bolting is to be avoided non-critical vibration conditions exist. (pumps, motors, airconditioning unit’s, generators etc.) ➢ Recommended for acoustic problem application and suitable for outdoor use. ➢ Suitable for outdoor use. NOTES 1. Material: Natural Rubber / Neoprene - S/A – 55˚ ± 5˚ 2. Type ( 1 ) :- 8 mm thickness Rib Rubber Sheet ( High & low) + Low density 6mm thickness EVA Foam in center + Rib Rubber Sheet (High & low) - 8 mm thickness. 3. Type ( 2 ) :- 6 mm thickness Rib Rubber Sheet + Low density 10 mm thickness EVA Foam in center + 6mm thickness Rib Rubber Sheet. 4. Maximum loading: 70 lbs/sq.in. 5. Working range: 15 to 60 lbs/sq.in. FEATURES ➢ Closed cell construction with excellent sound attenuation capability. ➢ No bolting required , simple field installation. ➢ Excellent resistance of oil and water. ( Recommended for outdoor use ) ➢ Higher deflection than conventional rubber- cork and all rubber Pads. ➢ 100% Surface contact with equipment.
CORK SANDWICH RUBBER PAD
APPLICATION ➢ Wherever bolting is to be avoided non-critical vibration conditions exist.(pumps, motors, airconditioning unit’s, generators etc.) ➢ Recommended for acoustic problem application NOTES 1. Material: Natural Rubber / Neoprene - S/A – 55˚ ± 5˚ 2. Type ( 1 ) :- 8 mm thickness Rib Rubber Sheet ( High & Low ) + Low Density Cork - 6 mm thickness in center + Rib Rubber Sheet ( High & Low ) - 8 mm thickness. 3. Type (2 ) :- 6 mm thickness Rib Rubber Sheet + Low Density Cork 10 mm thickness in center + Rib Rubber Sheet 6 mm thickness 4. Maximum loading: 60 lbs/sq.in. 5. Working range: 15 to 55 lbs/sq.in. FEATURES ➢ Simple field installation. ➢ Excellent sound attenuation capability. ➢ No bolting required.
SQUARE CELL RUBBER PAD
APPLICATION ➢ Wherever bolting is to be avoided and minor, non-critical vibration conditions exist. (pumps, motors, air- conditioning unit’s, generators etc.) NOTES 1. Material: Natural Rubber / Neoprene - S/A – 55˚ ± 5˚. 2. Maximum loading: 60 lbs/sq.in. 3. Working range: 15 to 55 lbs/sq.in. FEATURES ➢ Alternate Square cell construction. ➢ No boiling required. ➢ Simple field installation.
